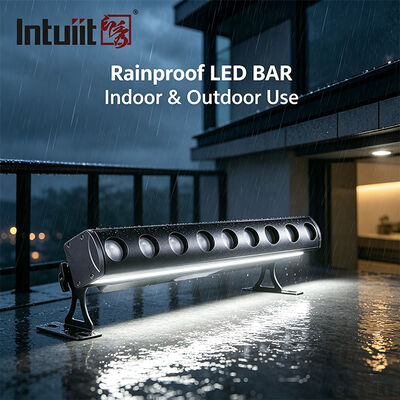

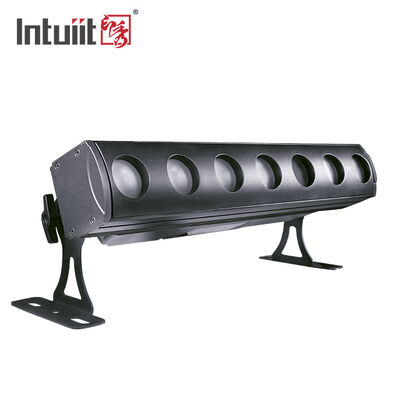

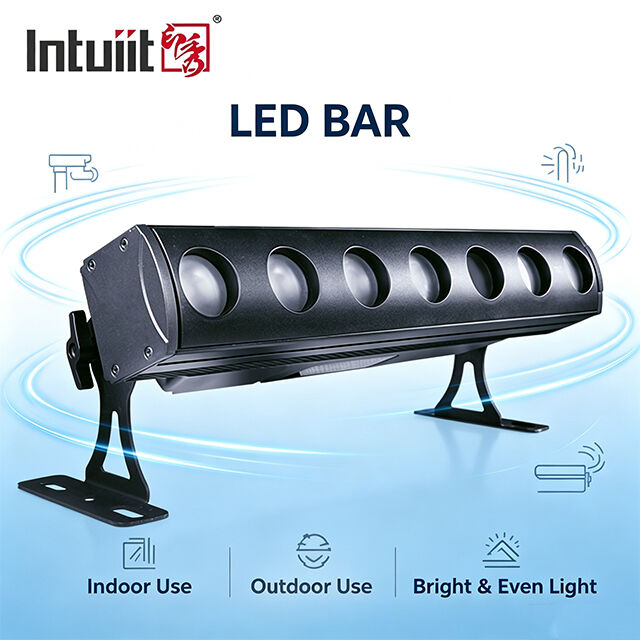

CT-001P-0.5M: Precision Stage LED Light Bar

7×15W RGBW | IP65 | DMX/RDM — Compact Power for Professional Productions

A high-output LED bar engineered for lighting designers who refuse to compromise between compact footprint and stage-grade performance. The CT-001P-0.5M packs seven 15W RGBW 4-in-1 LEDs into a rugged, weather-sealed chassis, delivering the color fidelity and beam precision demanded by concert tours, theatrical productions, and permanent installations alike.

Core Advantage: Rigorous Engineering in a Compact Form

At 0.5 meters, the CT-001P-0.5M defies the output-to-size ratio typical of linear fixtures. Die-cast magnesium combined with tensile aluminum yields a housing that is both lightweight for rigging and structurally resilient against the physical abuse of touring life. IP65 sealing ensures uninterrupted operation in outdoor festivals, wet stages, and dust-heavy environments — no compromises, no weather covers required.

Technical Specifications

Optical Performance

• Light Source: 7 × 15W RGBW 4-in-1 LEDs — full-spectrum color mixing with pure whites, zero color fringing at any saturation.
• Native Beam: 4.5° narrow aperture for long-throw accenting and tight aerial effects.
• Beam Shaping: Field-swappable lens filters — 20°, 40°, or 20°×40° asymmetric — adapt beam characteristics to venue geometry without swapping fixtures.
• 16-Bit Dimming: Cinema-grade smoothness across the full 0–100% range; no visible stepping, even in slow-fade sequences.

Build & Environmental Integrity

• Housing: Die-cast magnesium body + tensile aluminum end caps — optimized strength-to-weight ratio for touring and truss mounting.
• Ingress Protection: IP65-rated, fully sealed against water jets and particulate ingress.
• Thermal Management: Passive convection design — silent operation critical for theater and houses of worship.

Control & Connectivity

• Protocol: DMX512 / RDM bidirectional — remote addressing, status polling, and diagnostics reduce on-site maintenance cycles.
• Connectors: Seetronic 5-pin (3-pin compatible) DMX in/out + PowerCon in/out — industry-standard interconnects for rapid daisy-chaining.
• On-Fixture Interface: OLED display with 4-button tactile panel for standalone configuration and diagnostics.

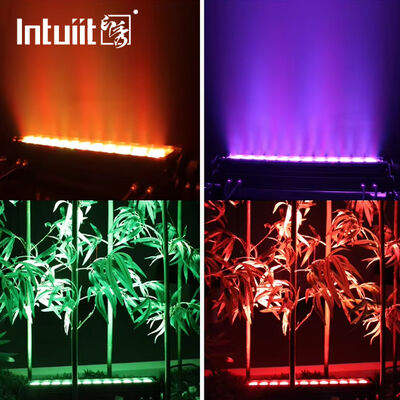

Application Spectrum

Concert Tours & Festivals；Theater & Opera；Houses of Worship；Corporate Events & Broadcast；Permanent Installations

Technical Data

Lighting Distribution Data

Product's Dimension

Installation Diagram

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
